It's busted

[Tony T]

I was at the rolling read and when the car was running down the car was bobbin up and down a little discussion eerm might have lost a weight or one of the wheels or both are egg shape couldn't feel it on the read.this is what found
It looked a lot of work should have made the mod when i built it 10 years ago trouble is i believed the drawing what a dumy

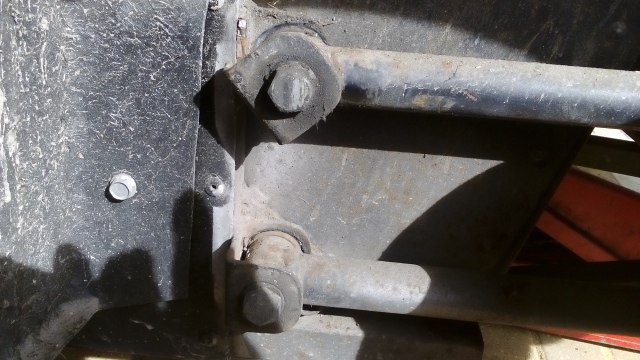

DSC_0116 (640x360).jpg (201.88 KiB) Viewed 1716 times

DSC_0122 (640x360).jpg (163.42 KiB) Viewed 1716 times

[steve m]

Tony,
I check mine every time I take the rear arches off, infact, that is one of this years winter checks

steve

[DJ.]

That's a pain, at least you found out in a safe environment and summer is over though.

[Tony T]

This is a new one it can't flex

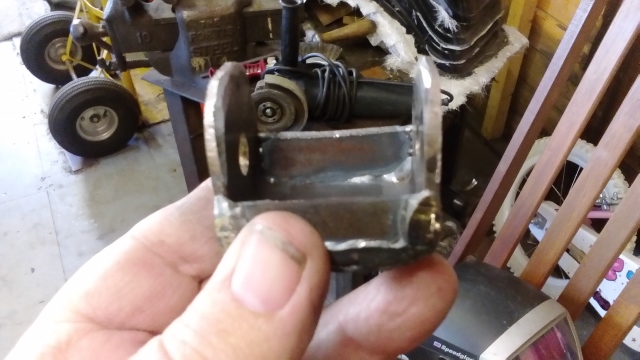

DSC_0130 (640x360).jpg (183.09 KiB) Viewed 1700 times

[Hammy]

Tony,
Excuse my ignorance mate but what is it and what busted mate?

[steve m]

Rear drop link bracket on the chassis, not the rear axle

The book design is not very good,, and alas mine are exactly the same as Tony's except still attached to my car

steve

[Tony T]

Yup steve m has got it. Sorry hammy this pick might be clearer the paint job isn't the best but it's protected

I also did the bottom one because i found a crack.Got a top tip welding the ends together it is certainly going to pull in together so just do this it sounds silly but when you're welding it will always pull just have to think and do what it needs

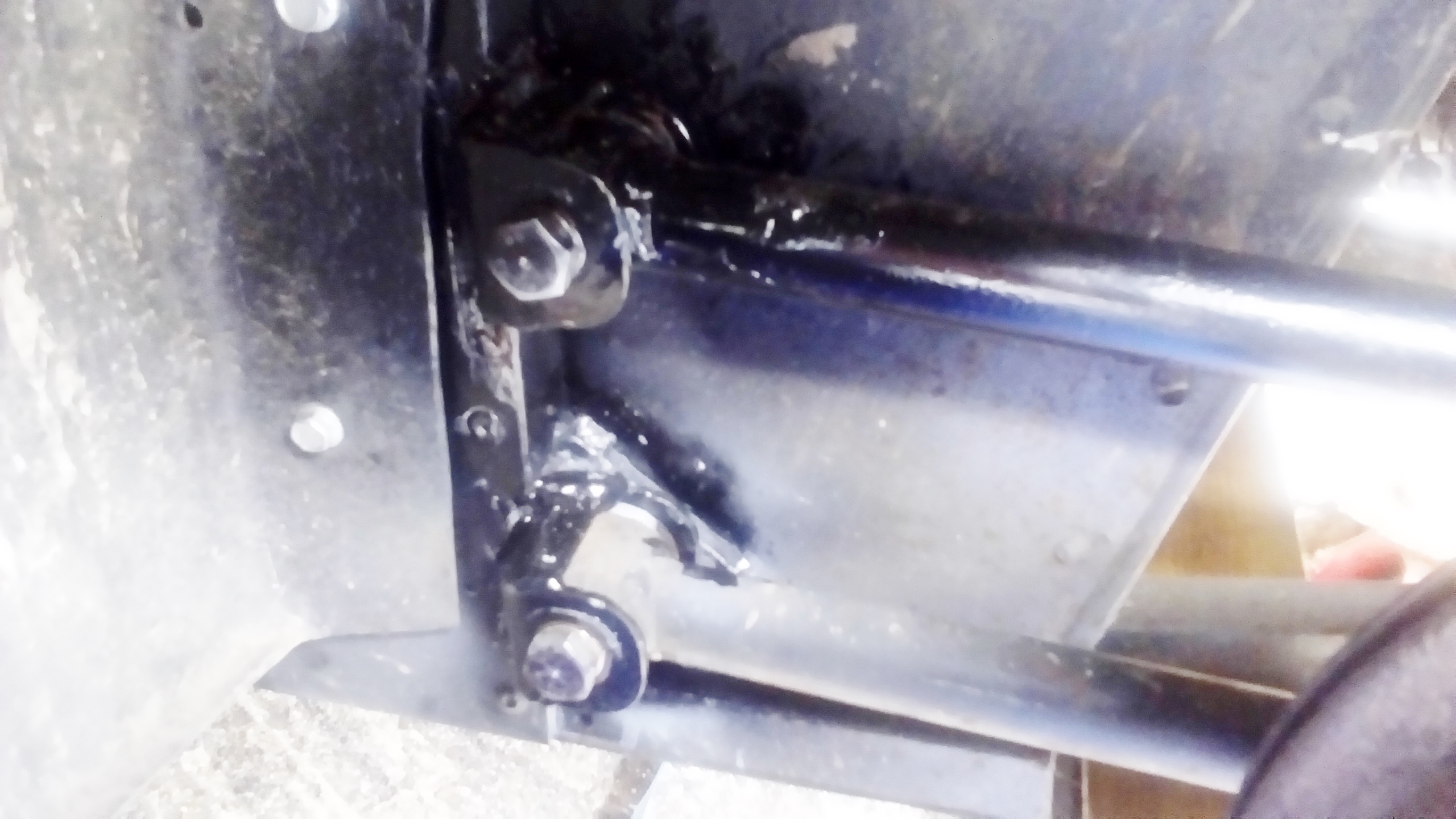

DSC_0127 (640x360).jpg (176.26 KiB) Viewed 1608 times

[bill132hotrod]

Hi Tony
I'm Glad you got it sorted mate (Good Find) these sort of things are easily over looked.

[locost220]

I was Lucy enough to take 4'and half years building mine, giving enough time for a few repots to surface on locost builders of failures so moded mine by linking the outer edges of the top and bottom brackets together and caps on the ends. About time I checked them though.

[Hammy]

Yup steve m has got it. Sorry hammy this pick might be clearer the paint job isn't the best but it's protected


I also did the bottom one because i found a crack.Got a top tip welding the ends together it is certainly going to pull in together so just do this it sounds silly but when you're welding it will always pull just have to think and do what it needs

DSC_0127 (640x360).jpg

Ahhh I see now!
