Re: Buffing out the armco scuffs - sit rep

Postby Tony C » Tue Jul 03, 2018 6:50 pm

David T wrote:Fair play Tony. If your guests ask why the roast has an interesting flavour, quickly pour them some more wine.


All the more likely as I used the sharpest kitchen scissors to cut the mat (with gloves covered in resin), trimmed crispy bacon off the roast chicken anyone? :lol:
Tiger Cat E1 - 2008-2009
Tiger R6 - 2009-2014
Austin Healey Sprite - 2014-2018
Fisher Fury Le Mans - 2018-2019

User avatar
David T
Posts: 3961
Joined: Sun Mar 18, 2012 9:48 am
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby David T » Wed Jul 04, 2018 6:53 am

Mrs T has mitigated the 'missing' scissors scenario by buying additional pairs (lots) until any visit to kitchen drawer always yields a pair. Even less incentive to return them from fabrication duties and I now have a choice!

User avatar
b33fy
Posts: 6379
Joined: Sat Mar 31, 2012 11:40 am
Location: Tonbridge
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby b33fy » Wed Jul 04, 2018 6:46 pm

Swmbo caught me with an expensive chef knife outside having used it to slice through some gorilla tape (attached to the car). “Don’t even think about it, no I haven’t and yes it’ll clean up fine, I’ll put it back now.” .. Was my response before she opened her mouth.. :roll:
Power.. small nail, fast hammer, Torque.. small nail, big hammer.. I got a big hammer :P

User avatar
David T
Posts: 3961
Joined: Sun Mar 18, 2012 9:48 am
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby David T » Sat Jul 21, 2018 9:50 am

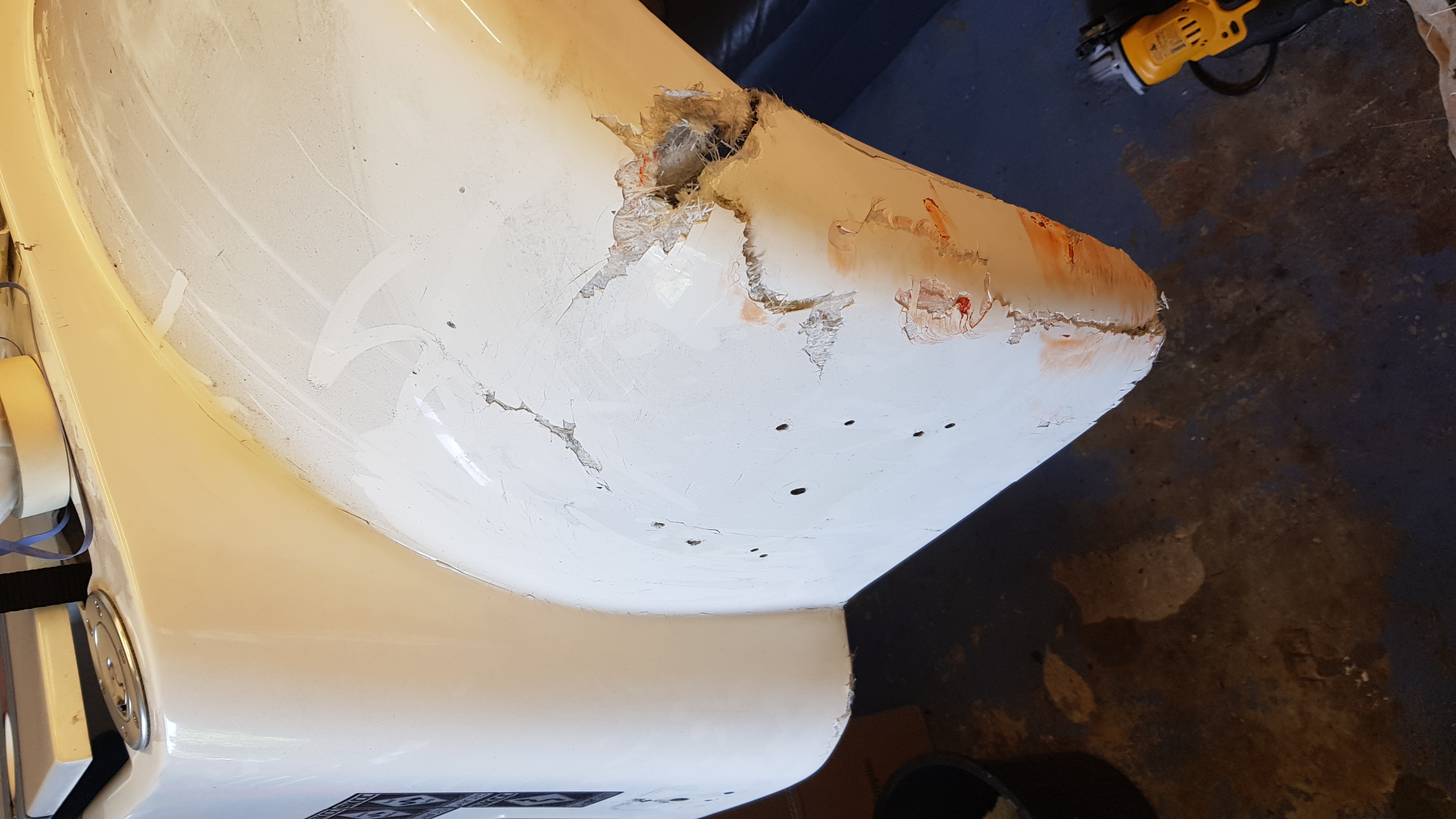

Rear arch before repair.

Red is the paint that rubbed off the Barrier!
Attachments

User avatar
David T
Posts: 3961
Joined: Sun Mar 18, 2012 9:48 am
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby David T » Sat Jul 21, 2018 9:52 am

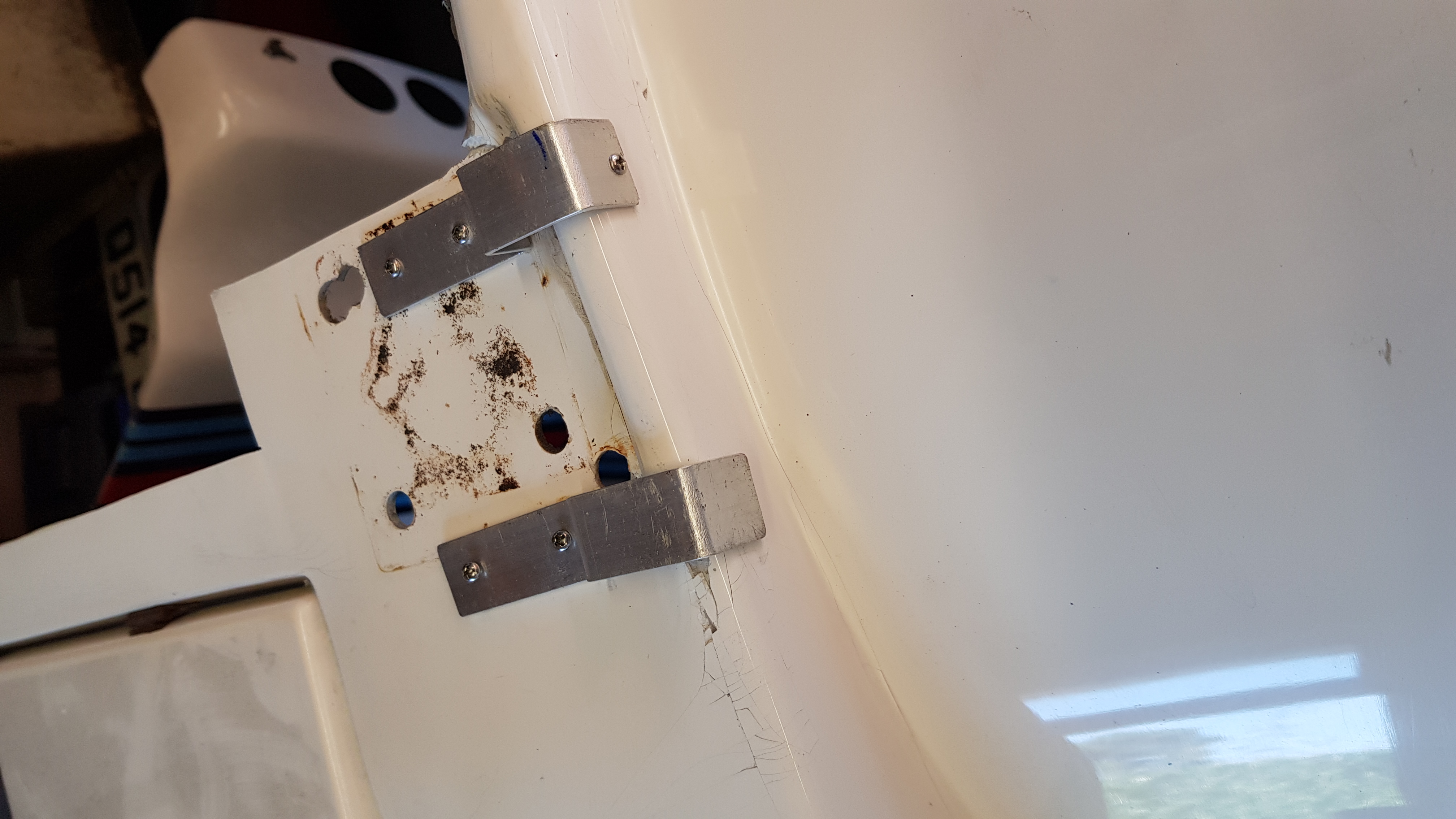

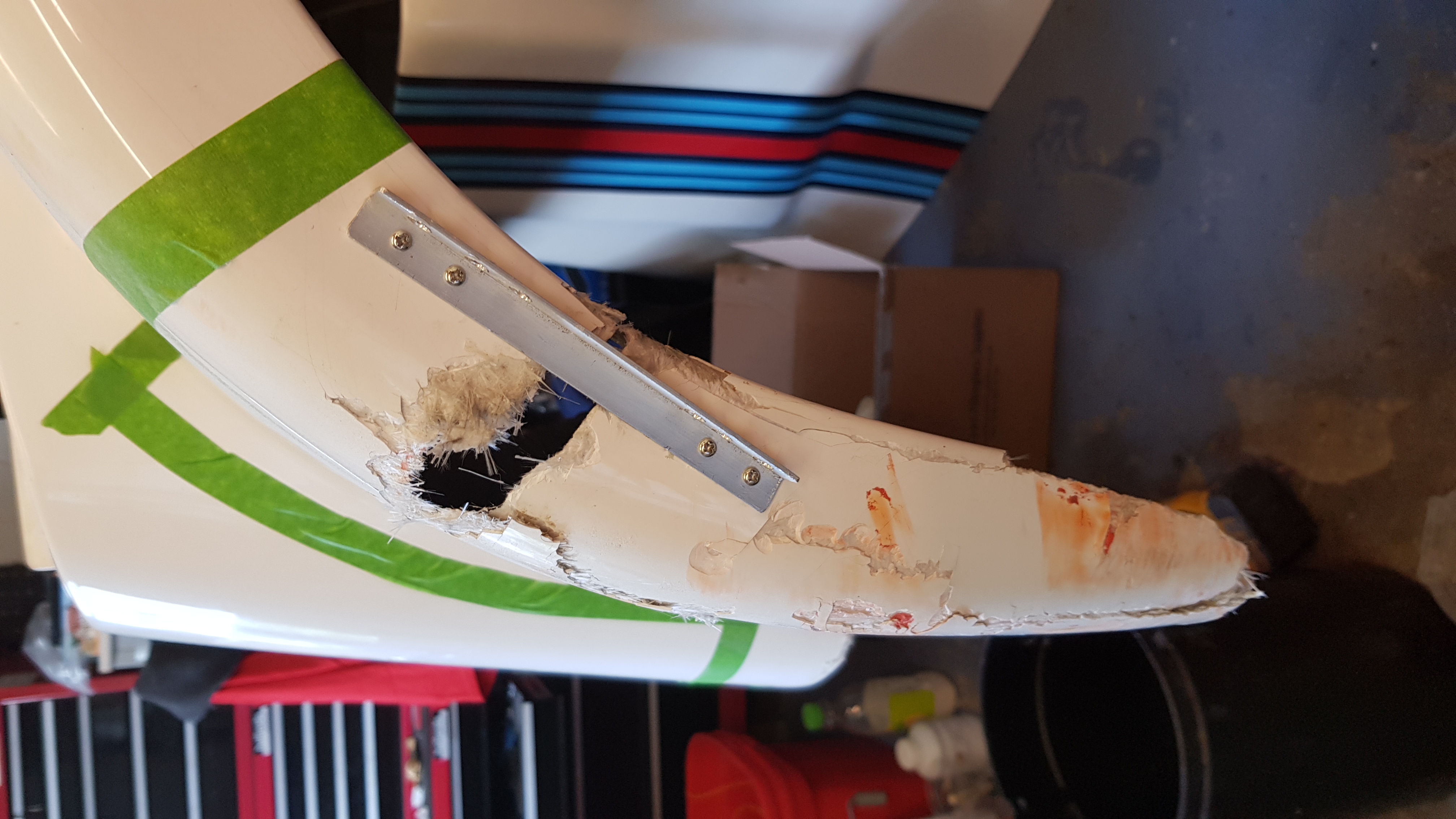

Roughly reconstructed with makeshift brackets and self tapping screws.
Attachments
Last edited by David T on Sat Jul 21, 2018 9:58 am, edited 1 time in total.

User avatar
David T
Posts: 3961
Joined: Sun Mar 18, 2012 9:48 am
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby David T » Sat Jul 21, 2018 9:54 am

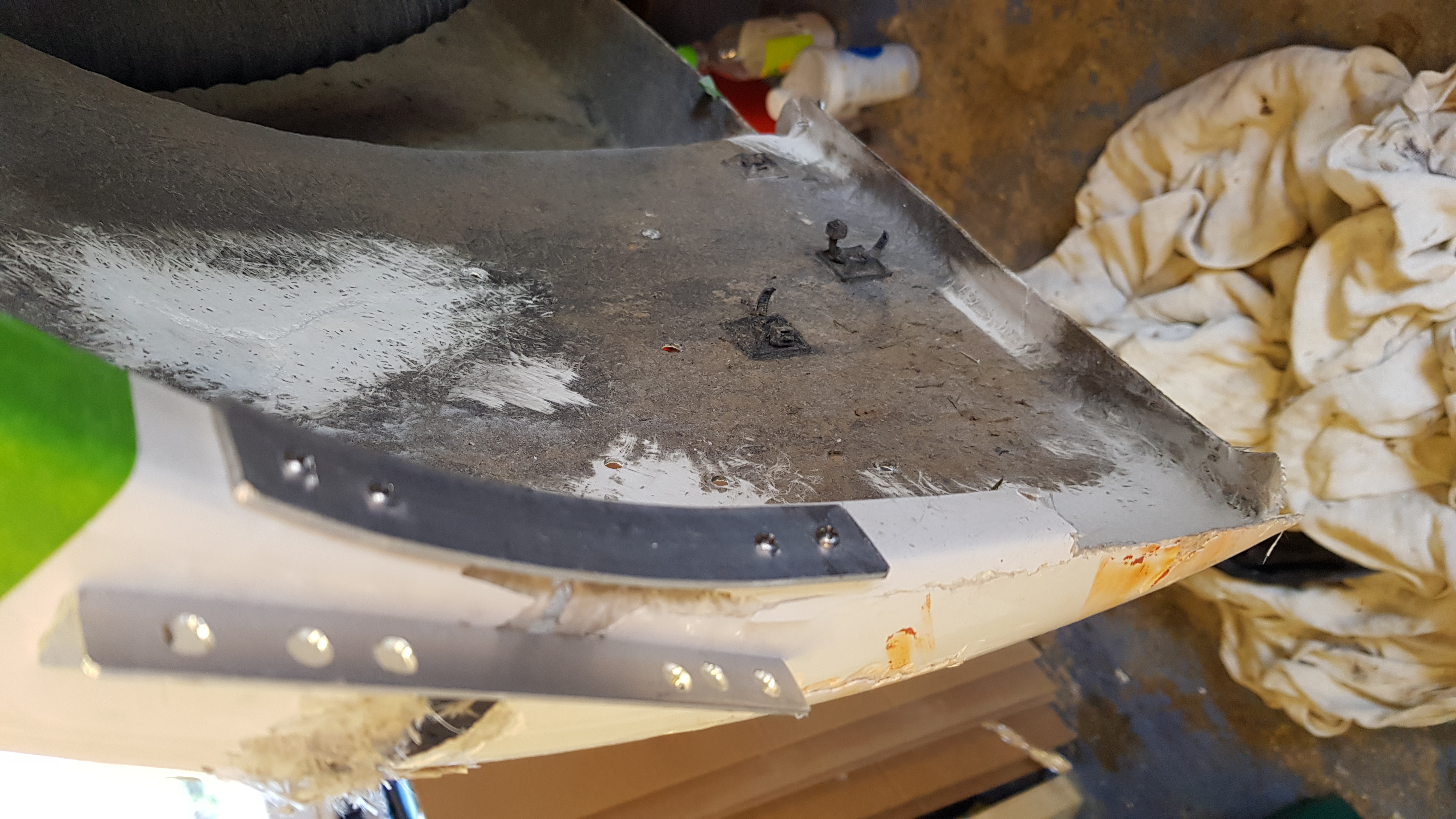

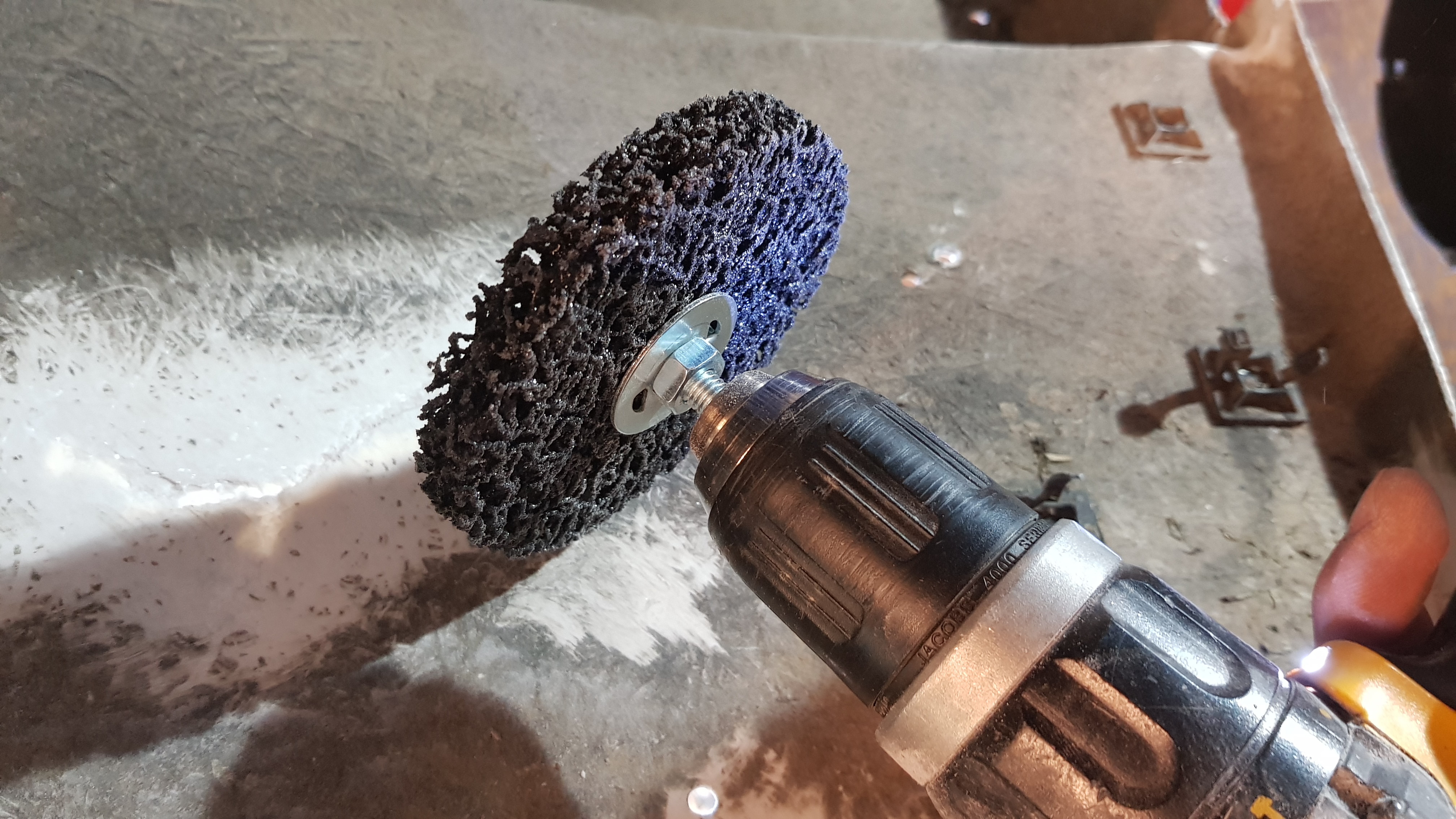

Back surfaces keyed with Screwfix paint removal tool that was so effective on chassis. Wire knot wheel was useless as it just polished the high spots.

After this some GRP was laid up on the rear and then the brackets could be removed.
Attachments

User avatar
David T
Posts: 3961
Joined: Sun Mar 18, 2012 9:48 am
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby David T » Sat Jul 21, 2018 9:59 am

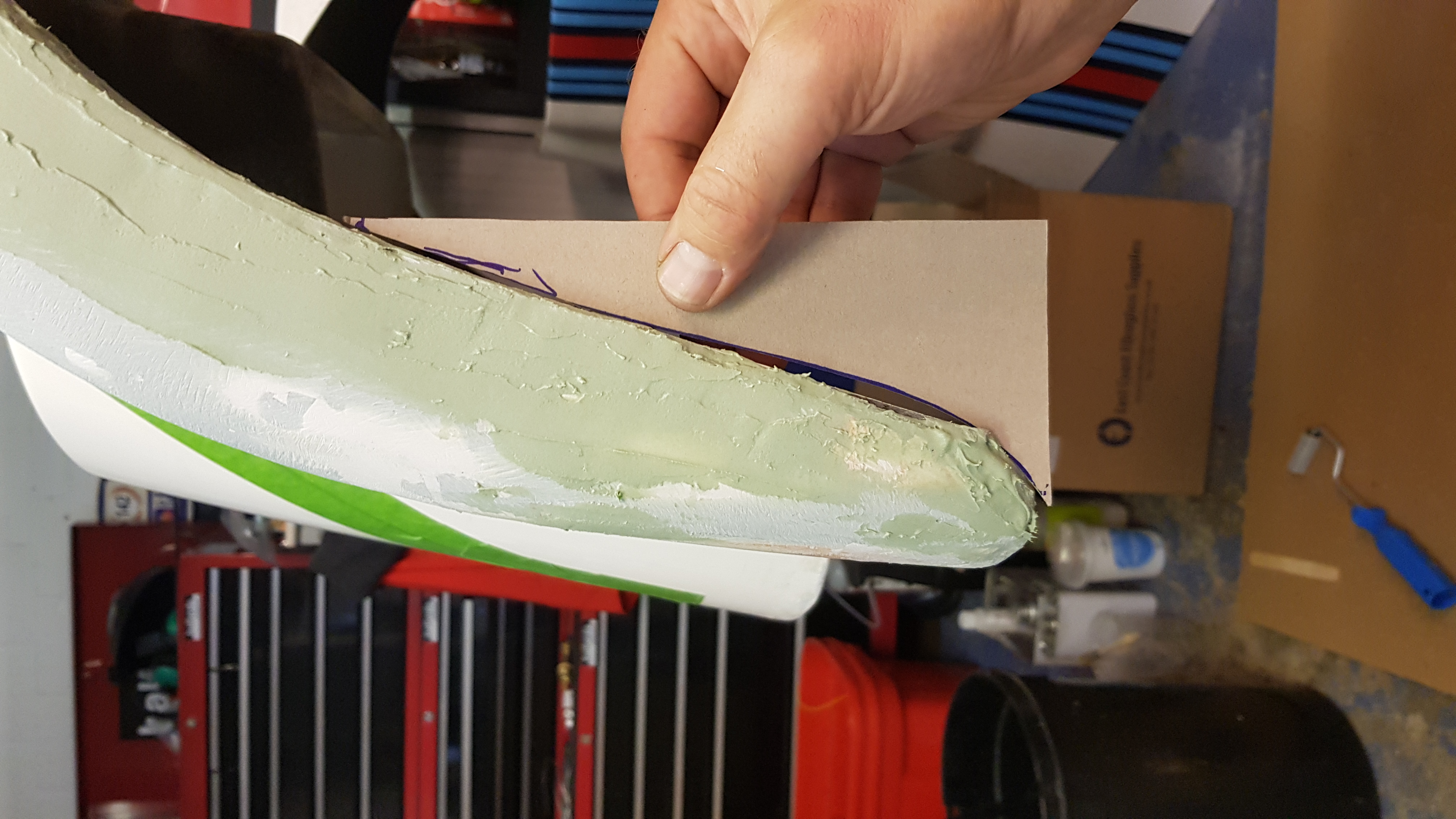

CAD template used to copy shape from good side of car.
Attachments

User avatar
David T
Posts: 3961
Joined: Sun Mar 18, 2012 9:48 am
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby David T » Sat Jul 21, 2018 10:00 am

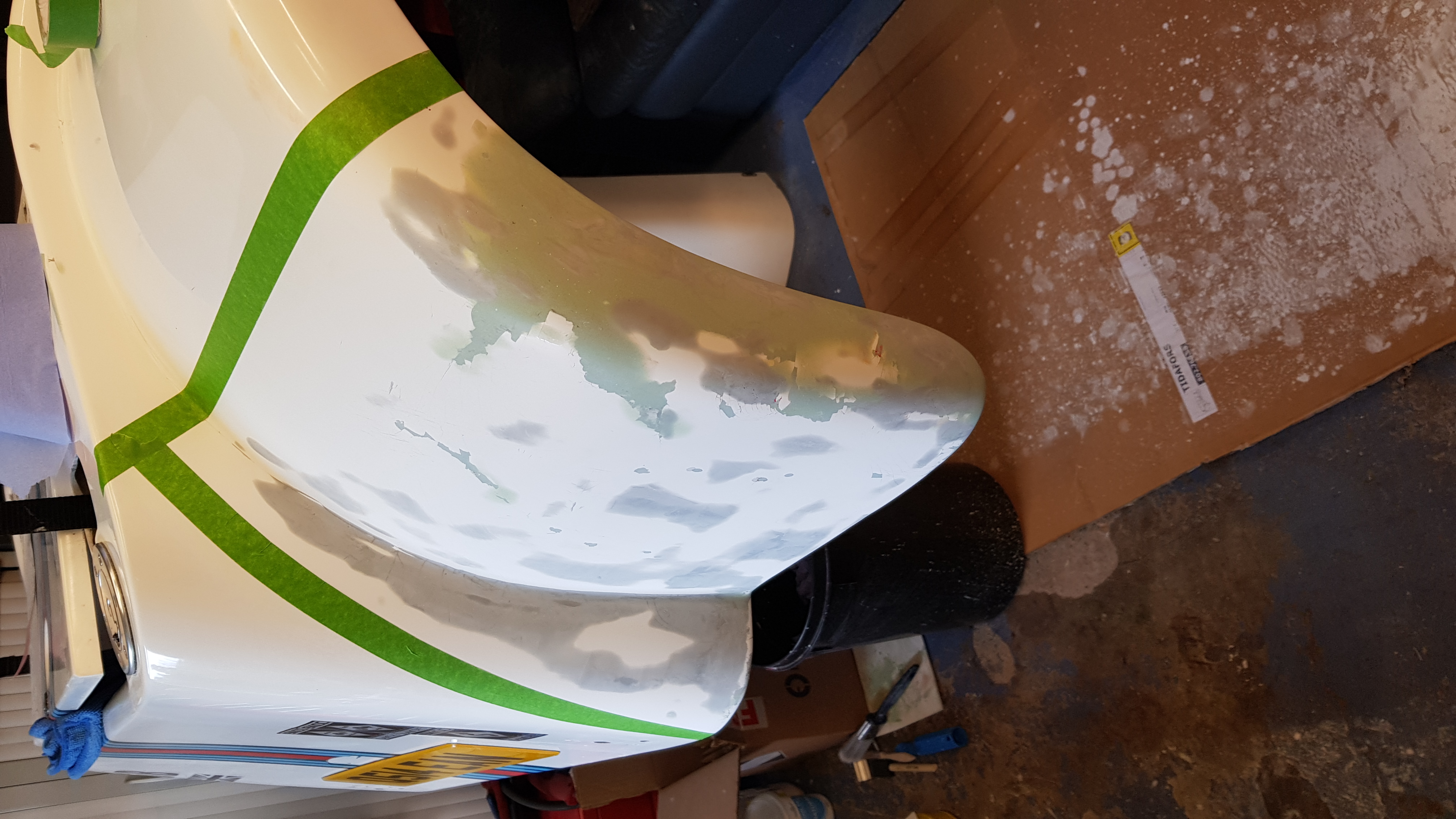

Many iterations of filling and sanding it is nearly there.
Attachments

User avatar
David T
Posts: 3961
Joined: Sun Mar 18, 2012 9:48 am
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby David T » Sat Jul 21, 2018 10:04 am

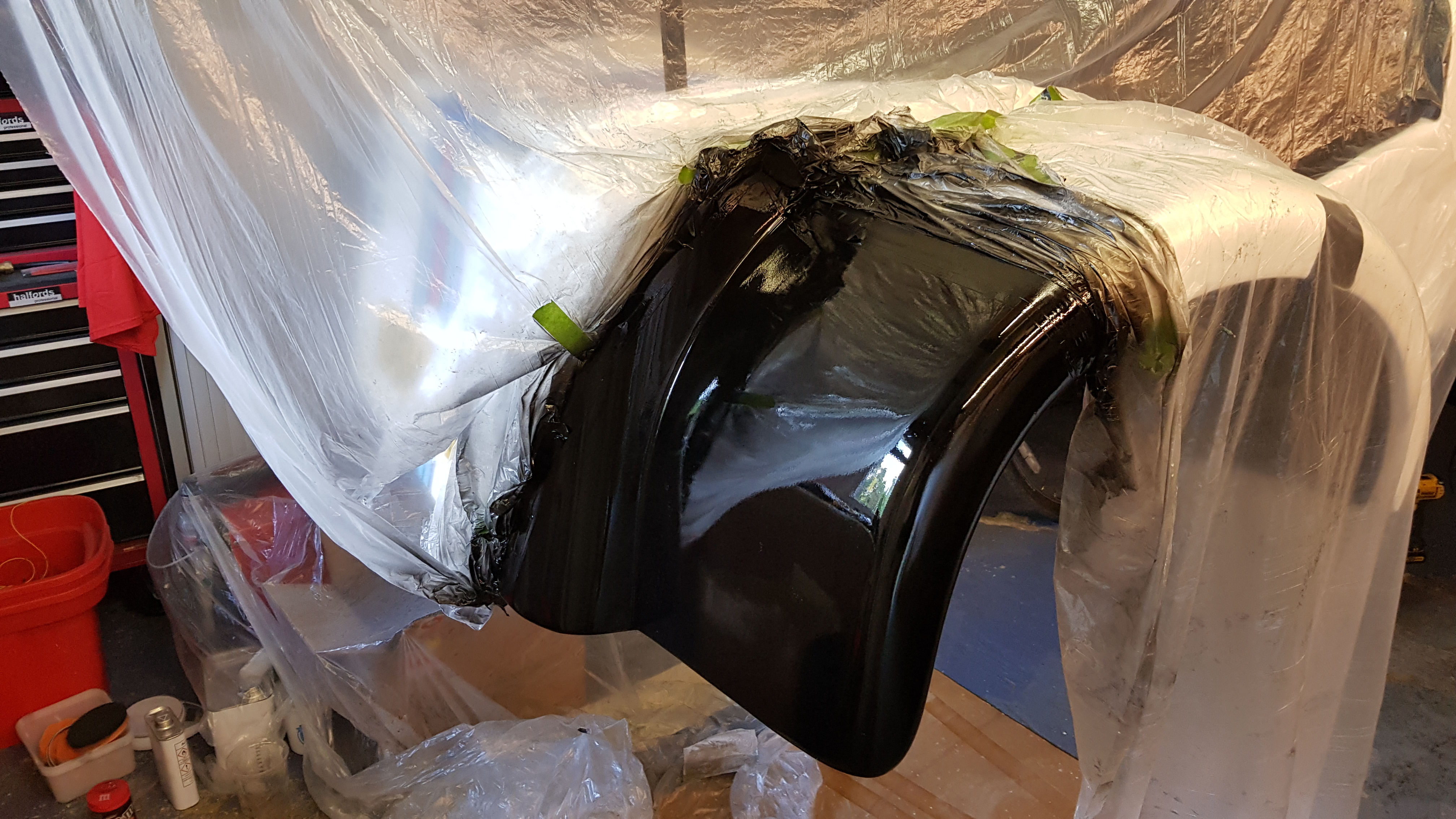

Now painted. Unfortunately this is not the end. A mould needs to be taken, this arch cut out and then a new one laid up. It looks sound but is demlaninated in places and for sure splits in the gel coat that have been filled will surely open up if driven. So, tomorrow it is out with the T-Cut and then a mould taken. I'm going for a split mould so that it does not lock itself around the arch.

Edit: Mrs T was a bit concerned the garage had been set up for a gruesome crime. :lol:
Attachments

Dick
Posts: 2217
Joined: Mon Jun 27, 2011 12:16 pm
Location: Gillingham
Contact:

Re: Buffing out the armco scuffs - sit rep

Postby Dick » Sun Jul 22, 2018 8:10 am

Be back on the road soon then
